Product Overview

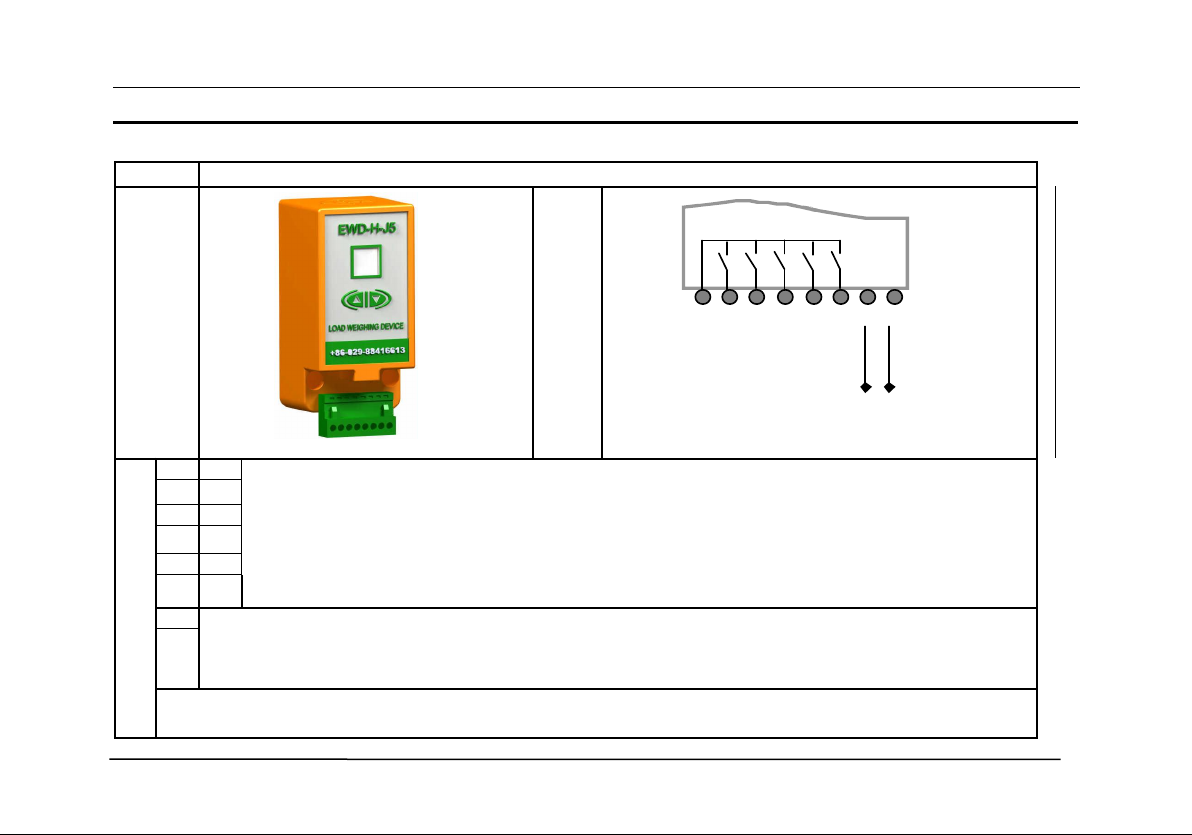

1、 Product Appearance, Interior Structure and Interface Directions：
EWD-H-J5
Appearance
Interior Structure
P1 P2 P3 P4 P5 P6 P7 P8
Sys. Def.
J1 ：Light load
J2 ：Semi lo ad
J3 ：h eavy lo ad
J4 ：R ated lo ad
J5 ：Ov er lo ad
Fig
[1B]
Power Source
AC /DC 2 4 V
J1 J2 J3 J4 J5
Interface Directions
P1
Com
Common terminal
J1,J2,J3,J4,J5 is 5 channel Solid State Relay Output
P2
J1
P3
J2
P4
J3
P5
J4
P6
J5
P7
System Power Source：DC/AC24V(±10%)／150mA
Absolutely not to connect the output terminals of this device except“P7、P8”to exterior power source directly,
and the permanent damage from this is beyond our responsibility.
P8
1.J1～J5 are interior solid state relays with Max. loading capacity of DC/AC 32V/50mA。
2.To be programmed as “no load～over load”output signal to participate in elevator logic control.
Technical File of the EWD-H-J5 Intelligent Elevator Load Weighing Device [User’s Guide]
Page3 of 16

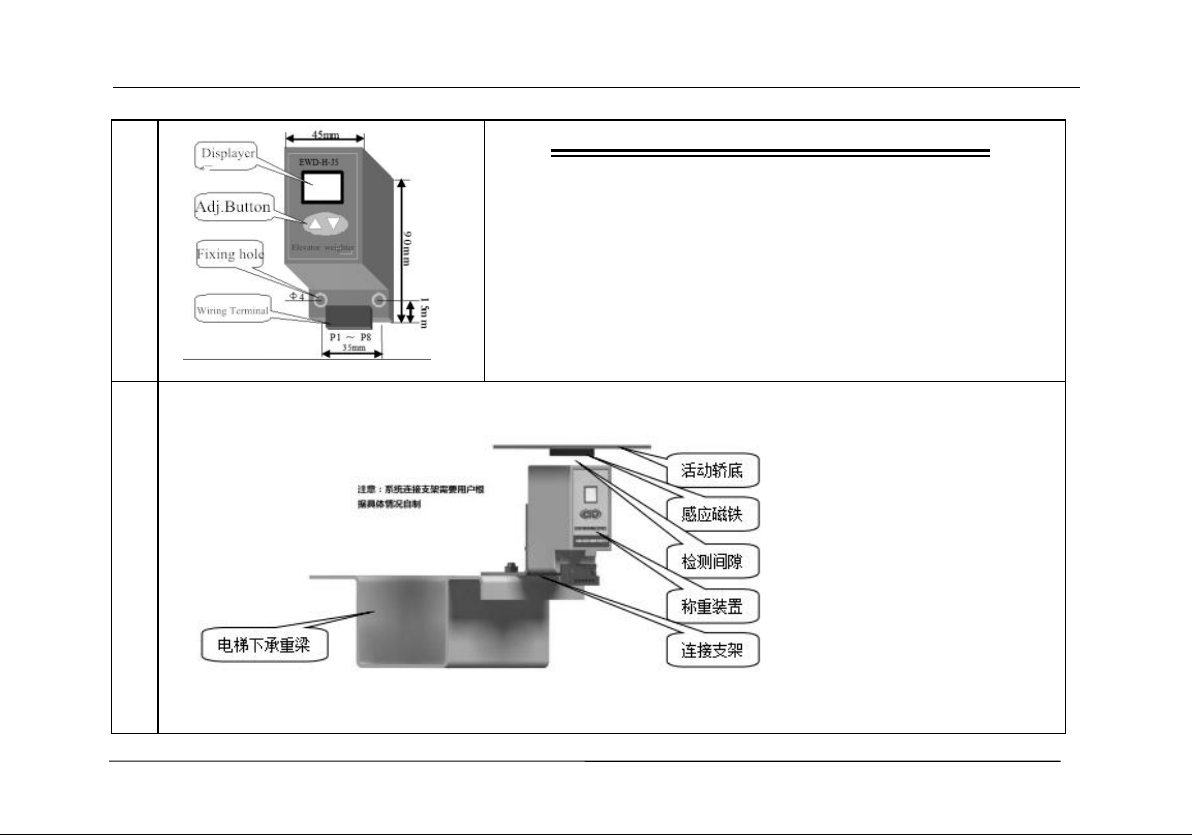

2、Exterior Dimensions & Installing Scheme
Exterior Dimension
Notice on Installation
1.Install this device as near as possible to the center of elevator car platform
or the original place of elevator overload switch. The system should be
installed on the bottom bearing beam of elevator car platform with the
inductive magnet adhering to the moveable car platform and the marking
surface facing to the inductive point of the weighing device.
2.The system supporting frame should be made according to elevator
concrete situation with the uneasily deforming material of thickness more
than 4mm or with enforcing plate to avoid swaying.
3.Adjust this device so that the car platform magnet aiming to the center
point of its upper section. Meanwhile, assure that the section of this device
parallel to that of the magnet.
I
nstalling Method
Technical File of the EWD-H-J5Intelligent Elevator Load Weighing Device [User’s Guide]
Page 4 of 16

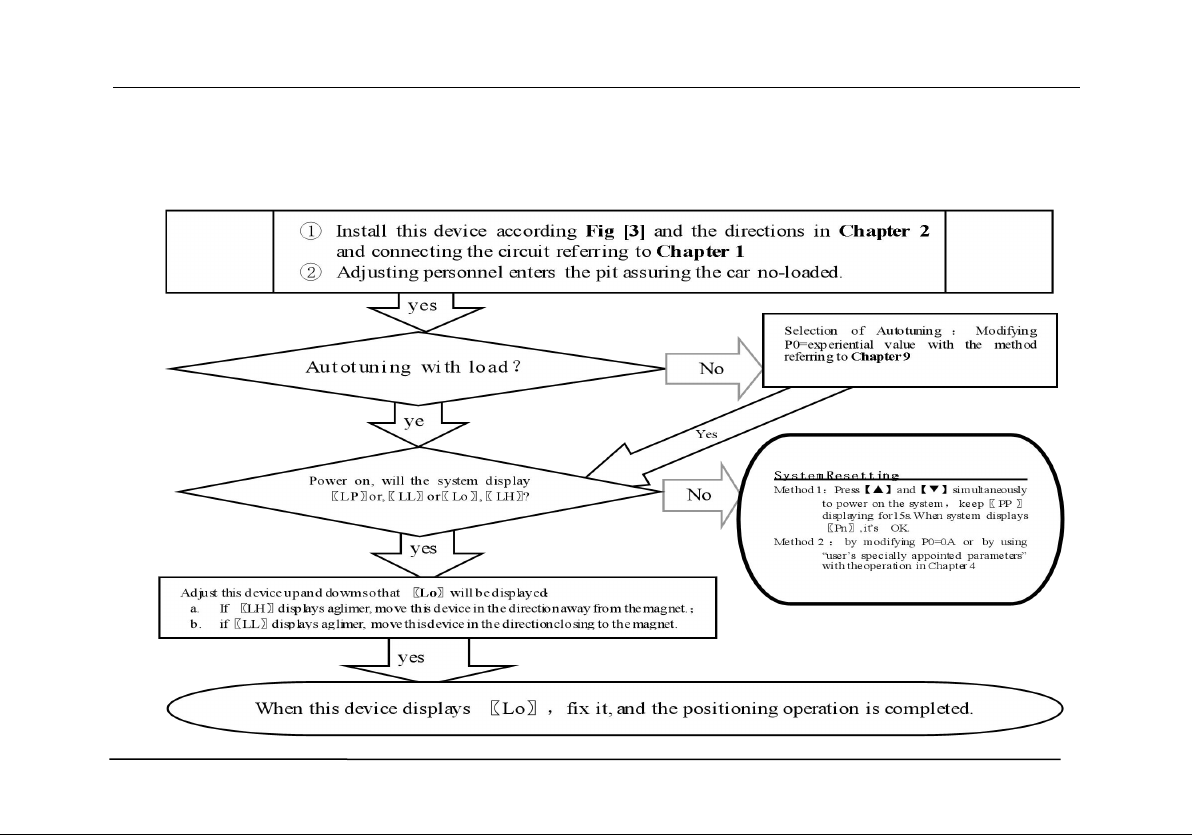

3、System Adjustment and Directions
①
System Positioning Operation
：
Technical File of the EWD-H-J5 Intelligent Elevator Load Weighing Device [User’s Guide]
Page5 of 16

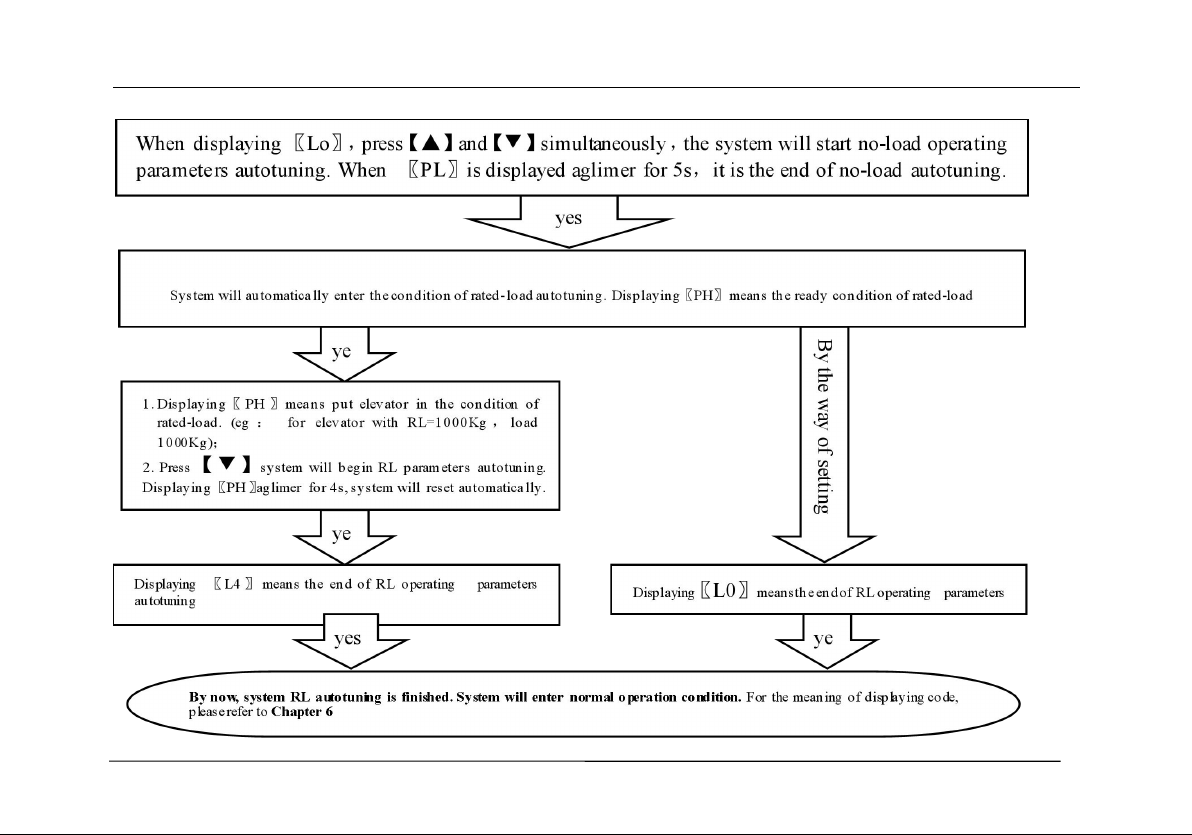

②No load and Rated Load Operation Parameters for Autotuning：
Technical File of the EWD-H-J5Intelligent Elevator Load Weighing Device [User’s Guide]
Page 6 of 16
③System Adjustment under other conditions：
For the following reason，it is necessary to modify the operating parameters of this device.
①For elevator car decoration change，the dead weight of the moveable car platform changes；
②The car platform appears mechanical deformation；
③The temperature difference between winter and summer has an unneglecting effect on the elastic coefficient
of car platform damping rubber；
④The car platform appears damping rubber appears aging or deforming；
⑤The elevator overruns at the top or at the bottom；
⑥The weighing device becomes slack at the fixing end.
Operation Parameters Adjustment and the Implication
4
、
System Operation Parameters Adjustment (Annotation：* represents for a hexadecimal value of
“0～9,A～F”)
①Simultaneously press 【▲】and【▼】on system control keypad to power on ，this moment 〖PP〗will be displayed
aglimer, that means entering operation parameters modifying status.
②Release【▲】and【▼】buttons，system will display〖P*〗and〖**〗alternately. 〖P*〗is an indication of system
operation parameters；〖**〗is the interior data value of〖P*〗.
③When displaying〖P*〗，press【▼】，indication of system operation increases；press【▲】，indication decreases.
④When displaying〖**〗，press
【▼】
，data value increases；press
【▲】
，data value decreases.
⑤Release buttons，system displays operation indication and configuring data alternately.
⑥To modify other configuring datum, repeat the operation in item 3, item 4, item 5.
⑦At the moment when system displays 〖P*〗，Simultaneously press【▲】and【▼】，system will save modified
datum for future use. This moment, system displays 〖 Pn 〗 for 1 second. System operation parameters
modification of this time is completed.
Technical File of the EWD-H-J5 Intelligent Elevator Load Weighing Device [User’s Guide]
Page7 of 16
Example：Modify parameter P2 to 16；
①Simultaneously press【▲】and【▼】 on system control keypad to power on ，this moment 〖PP〗 will be
displayed aglimer, that means entering modifying status.
②Release【▲】and【▼】buttons，system will display〖P0〗and〖**〗aglimer
③When displaying〖P0〗，press【▼】to increasing it to〖P2〗；
④Release button
【▼】
，system alternately displays〖P2〗and〖**〗；
⑤When displaying〖**〗，press【▲】and【▼】to regulate its value as〖16〗；
⑥Release button，system alternately displays〖P2〗and〖16〗；
⑦At the moment when system displays〖P2〗，Simultaneously press 【▲】and【▼】，system will save modified
datum for future use. This moment, system displays 〖 Pn 〗 for 1 second. System operation parameters
modification is completed.
5
、
Implication of parameter P
：
①Directions of Parameter P0 [System Operation Mode]：：
Setting
Explanation
Default Setting
Normal Value
00
Normal Operation
01
00
This value will
be modified in
the course of
autotuning.
01
Sensor installing positioning, system no-load and rated-load autotuning operation.
02
Specifying system no-load autotuning operation.
03
Specifying system Rated-load autotuning operation.
04
Select “20% rated load”autotuning operation，being convenient for users special
adjustment.
25～99
×
0.1mm
For elevator with known “no-load→rated-load”compressing moveable car platform
damping rubber pad，it may be set manually. The system may be put into use after
system installation positioning. (This adjustment is very convenient for elevator
manufacturers. For more detail, refer to Chapter 9.)
Technical File of the EWD-H-J5Intelligent Elevator Load Weighing Device [User’s Guide]
Page 8 of 16
②Directions of Parameter P1
Setting
Explanation
Default Setting
User Setting
01
Solid state relay，breaks
01
③Directions of Parameter P2 [Light load parameter setting]：
Setting
Explanation
Default Setting
User Setting
00
～
30
Light load signal output.
05
④Directions of Parameter P3 [Half-load parameter setting]：
Setting
Explanation
Default Setting
User Setting
P2+1～60
Half-load signal output
30
⑤Directions of Parameter P4[Heavy-load parameter setting]：
Setting
Explanation
Default Setting
User Setting
P3+1～90
Heavy-load signal output
70
⑥Directions of Parameter P5 [heavy-load parameter setting]：
Setting
Explanation
Default Setting
User Setting
P4+1～99
Full-load signal output
90
⑦Directions of Parameter P6 [System overload coefficient]：
Setting
Explanation
Default Setting
User Setting
00～20
Rated load 105%*, overload signal output.
05
⑧Directions of Parameter P7 [Operation Status setting of Solid state relay“J1”]：
Setting
Explanation
Default Setting
User Setting
00～1F
Light load motor output
01
(Light load action close )
⑨Directions of Parameter P8 [Operation Status setting of Solid state relay “J2”]：
Setting
Explanation
Default Setting
User Setting
00
～
1F
Half load motor output
02(semi-load
）
dynamic close)
Technical File of the EWD-H-J5 Intelligent Elevator Load Weighing Device [User’s Guide]
Page9 of 16
⑩Directions of Parameter P9 [Operation Status setting of Solid state relay “J3”]：
Setting
Explanation
Default Setting
User Setting
00～1F
Heavy load dynamic close
03(Heavy load dynamic close)
⑪Directions of Parameter PA [Operation Status setting of Solid state relay “J4”]
Setting
Explanation
Default Setting
User Setting
00
～
1F
Full load motor output
04(FULL- load dynamic close)
⑫Directions of Parameter PB [Operation Status setting of Solid state relay “J5”]
Setting
Explanation
Default Setting
User Setting
00
～
1F
The same as the above
1F(Over- load dynamic close)
⑬Directions of Parameter D [Displacement-expanding Setting]：
Setting
Explanation
Default Setting
User Setting
01～03
11
～
13
Higher Bit
Lower Bit
01 displacement closing ，
10mm valid
0-Load increases,
1-displacement approaches
Select sensor 0～9.9mm valid；
Notice：①Select unindicated setting will lead to system abnormal operation.
②For the variety of the fleeting of elevator no-load point, special care should be taken in the use of PA, PB and PC for No-load auto-zeroing. It
is suggested to forbid or to allow this function according to the user’s concrete situation.
③Even if auto-zeroing function is in use, autotuning operation should be done again in the course of periodical maintenance.
Explanation of Displaying Code:
6、System Normal Operation Code: (“W”is the present effective load)
Display Code
Indication
System
displays
〖
L*
〗
L0
No-load car
Output No-load signal
No-load：00≤W≤Rated-load×P2％
L1
Light-load car
Output Light-load signal
Light-load
：
No-load <W
≤
Rated-load
×
P3
％
L2
Semi-load car
Output Semi-load signal
Semi-load：Light-load <W≤Rated-load×P4％
L3
Heavy-load car
Output Heavy-load signal
Heavy-load
：
Semi-load <W
≤
Rated-load
×
P5
％
Technical File of the EWD-H-J5Intelligent Elevator Load Weighing Device [User’s Guide]
Page 10 of 16
L4
Rated-load car
Output Rated-load signal
Rated-load：Heavy-load <W≤Rated-load + Rated-load×P6％
LF
Over-load car
Output Over-load signal
Over-load：W> Rated-load
For user to save：the code of this elevator
Rated-load Compression: ㎜
7、
Code for Other Operation and Failures
Display Code
Indication
Solution
1
YS
System Startup
2
Pc
System Resetting
3
PP
Get into the status of operation parameters modification
4
PL
Autotuning No load parameters (Static Displaying represents preparative status
，
twinkling displaying for
the end of testing)
5
PH
Autotuning Rated load parameters (Static Displaying represents preparative status，twinkling displaying
for the end of testing)
6
LL
Installation
and
positioning
Too big Positioning
Move this device closing to the magnet
7
LH
Too small Positioning
Move this device away from the magnet
8
Lo
Accurately Position
9
LP
Interior Auto Correction
10
P*
System Configuration Indication
11
Pn
Saved
12
EA
Saving Failure
Modify the operation parameters
13
EJ
Without this system setting
Check system setting value
14
ED
Car platform deformation deficient
Affirm elevator in the condition of rated load
15
EC
Car platform deformation
overflowing
Damping rubber is too soft
，
adjust PD
16
EH
Incorrect installation place of the
magnet
Check the magnet installation place
17
EL
Incorrect installation place of the
magnet
Check the magnet installation place，pay special attention to polarity
and distance.
Technical File of the EWD-H-J5 Intelligent Elevator Load Weighing Device [User’s Guide]
Page11 of 16
How to do？
8、Brief Analysis of Other Conditions：
①After installation of this weighing device, weighing signal changes in the course of operation？
The elevator load output value is not held after elevator starts, adjust the relative items of the inverter and
controller.
②After long-term of operation, system no load zeroing point appears larger deviation？
May be caused by the reason described in section 3,Chapter 3. Set system Autotuning mode to calibrate again
③After the elevator weighing is changed from heavy load to light load, heavy load signal is still displayed？
The movement of the moveable car platform is blocked, it is not reset after pressing. Solute the relevant
mechanic problems.
④System output signal doesn’t change linearly along with the change of load？
Check the structure of the moveable car platform，pay more attention that there should only be one pair of
damping rubber or spring moving relatively to the moveable car platform.
⑤During the system operation, analog output is abnormal or system resetting or speed-regulator cooperation is
abnormal？
It may be caused by system power source series interference. Select another group of power to supply the
system, or to provide an exterior power of AC/DC 24V/300mA to supply.
9、
How to set an elevator with known
“
no-load
→
rated load
”
compression deformation
？
For example：The max “no-load→rated load”compression deformation of this elevator is 5.8mm.
Operation
⒈Modify“P0=58”and save it. Refer to chapter 5；
⒉After system restarting,〖LP〗is displayed. Wait until〖LL〗,〖Lo〗or〖LH〗 is displayed；
⒊When the car is empty，adjust system installation position to make it display〖Lo〗，fasten it；
⒋When〖Lo〗is displayed，press【】and【】simultaneously，system begins to autotune no-load
operation parameters；
Technical File of the EWD-H-J5Intelligent Elevator Load Weighing Device [User’s Guide]
Page 12 of 16
⒌After〖PL〗is display aglimer for 5 second, the whole process of autotuning is finished.
10、How to do Re-Autotune operation for system?
Method 1：Simultaneously press【】and【】on system control panel to power on. This moment, system
aglimmer displays〖PP〗and 〖P-〗.Keep 15 seconds，system will display〖Pn〗.On that occasion，
all operation parameters reset to default settings.
Method 2：Modifying parameter P0=0A or user specified operation code will reset system immediately to
default status. But for users with specified code. The method is mentioned in Chapter 5.
11、
How to modify output status of a system after autotuning is finished
？
Modify the corresponding controlling parameters of parameter P respectively. The method is mentioned in
Chapter4.and 5.
12、How to adopt 20% rated load for rated load autotune？
Modify P0=04. After〖Lo〗positioning and no-load〖PL〗autotuning，in the period of system displaying
〖PH〗，load 20% of the rated load，press【】，system displaying 〖L1〗means the end of
adjustment. This is an auxiliary method when 100% autotuning can be done.
13、The compression of car damping rubber exceeds the sensor inspection range？
Before autotuning, be assure to select “PD”=“02/03”and save it. Then, readjusting the installing position
of the sensor is OK (See parameter PD for more details).
14、
On adopting operation of
“
load increasing
，
displacement aloofing
”
method
？
Before autotuning, be assure to select “PD”= “1*” and save it. Then, readjusting the installing position
of the sensor is OK.
System Characteristics
15、
Working principle of
“
EWD-H-J5
”
elevator weighing device
With the constantly development of elevator technology, the impact of elevator weighing device on
Technical File of the EWD-H-J5 Intelligent Elevator Load Weighing Device [User’s Guide]
Page13 of 16
elevator performance can not be neglected. The requirement of elevator for weighing devices with high
accuracy, high reliability and multi-functions becomes extremely urgent. Presently, the progress of sensor
technology and microcomputer is ceaseless. With the adoption of highly accurate Hall sensor，the change of
displacement along with car platform load can be checked. Meanwhile, with the adoption of single chip
microprocessor, scientific calculation can be done，making this device weigh the elevator car load effectively.
With the cooperation of EWD－AL1 remote signal transferring device, analog or digital signal can be
transferred far away, largely enlarging the user’s application range and decreasing the additional cost in the
course of use
.
16、
Main property
⑴ Working in a contactless and inductive way. No mechanical movement. Solid-state relay outputs. Being
directly installed in the original place of overloading switch. No necessity of changing the mechanism of
elevator car.
⑵ The whole system is designed in the waterproof structure with small overall size, easy installation and
adjustment and simple structure.
⑶ Wide induction range, high accuracy positioning, intelligent temperature compensation making the range of
operating temperature wider.
⑷ The inner core consists of Hall sensor of high accuracy and single-chip microprocessor of high efficiency.
All parameters may be set on the field.
⑸ Adopting strong inductive magnet, improving the anti-interference capability of the system to the utmost.
⑹ Each set of products undergo a rigorous aging process to ensure reliable work.
(7)System based on mathematical equations for scientific computing, automatic detection error correction
⑻ On-site adjustment is easy, either by autotuning or by manual displacement setting.
(9)The independent development of the programmable output signal control method can be used for all kinds of
traction elevator with moveable car platform.
19、Technical specifications：
Technical File of the EWD-H-J5Intelligent Elevator Load Weighing Device [User’s Guide]
Page 14 of 16
⒈
Application
Being applicable to all moveable car platform elevators，with an auto inspection range of (2.00mm ≤
car platform movement ≤ 10.00mm) ； manual setting displacement range 2.5 ～ 9.9mm (relate to
parameter PD)
⒉
Sensitivity
Elevator rated load/200 (With the rated load of 1T, it is 5.0Kg)
⒊
System Error
≤
1.5
％
(5
～
40
℃
)
In the whole temperature range
≤
3.0
％
⒋
Non-Linearity
≤1.0％
⒌
Output
Mode：
Solid-s
tate
Relay
Programmable
universal signal
①
3/5 channel programmable output modes are: No load, light load, semi full load,
heavy load, rated load, overload (customer may set the changing range freely).
②Each channel can be programmed as dynamic Close or Open contact.
③Contact Capacity:DC/AC 32V/15mA。
6
Working
Temperature
：
-20
～
55
℃
7
Relative
Humidity：
20%～99％RH
8
Reaction Time
≤0.25 Second
9
Power Supply
：
AC/DC 24(
±
10%)V
／
150mA
10
Installation
Place：
Moveable car platform of elevator
11
Overall Size：
45×45×90 mm3
：T
he intension exceeding the limit parameters listed above may result in the abnormality or permanent damage to the
system.
Promise
⑴If this system appears any quality problem of product itself in 1 year after delivery, it will be replaced freely
（damage of the product seal will not be dealt with）。
⑵For any requirement of special functions, make it out by mail.
⑶Any system abnormality in adjustment or operation, please contact our company directly.
Technical File of the EWD-H-J5 Intelligent Elevator Load Weighing Device [User’s Guide]
Page15 of 16
Others
１.Accessory
Instruction Manual
1 copy
Fixing Screw set
2 sets
Inductive magnet [20×20×4mm3]
1 piece
2.address book
029-88416613 85565714
029-85568478
7D ， Block A, Olympic Building,
14th Chang An North Road, Xi'an
029-85565714-886
710068
Technical support:18092639752 18092639750
