Elevator Steel Rop List

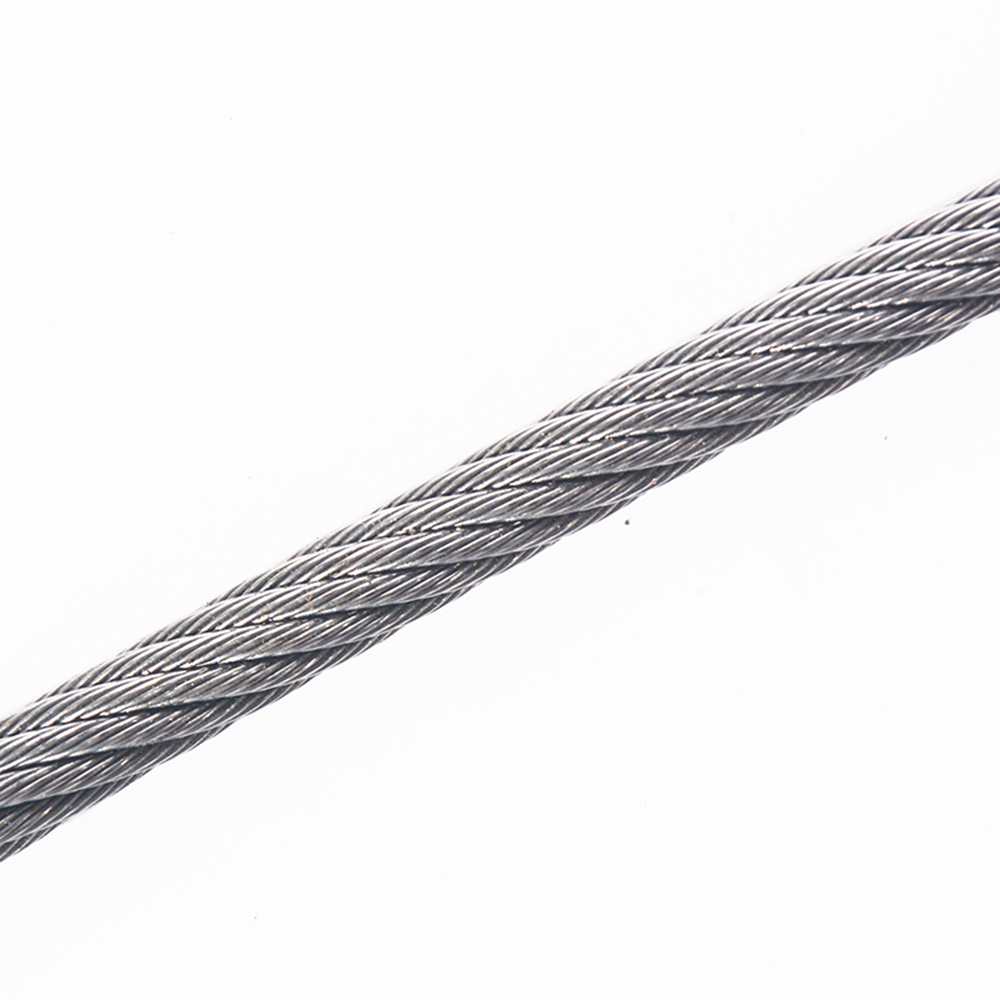

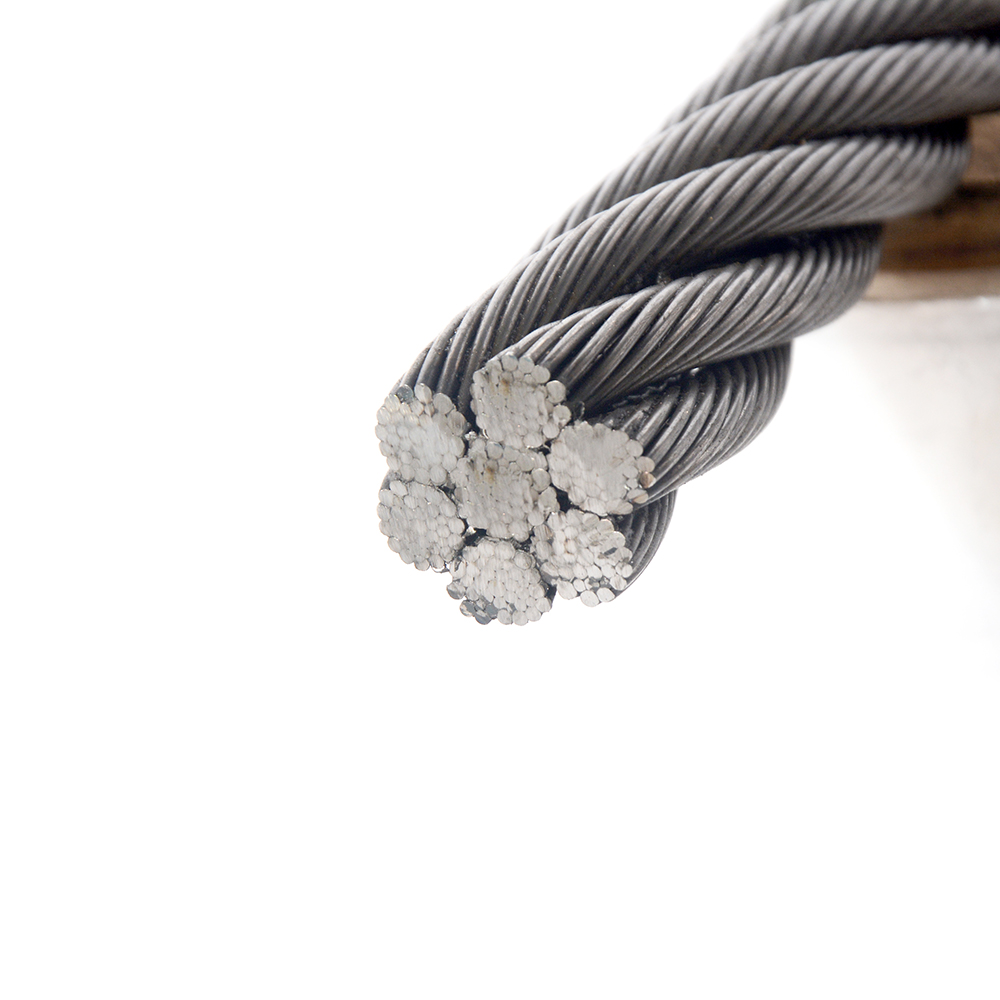

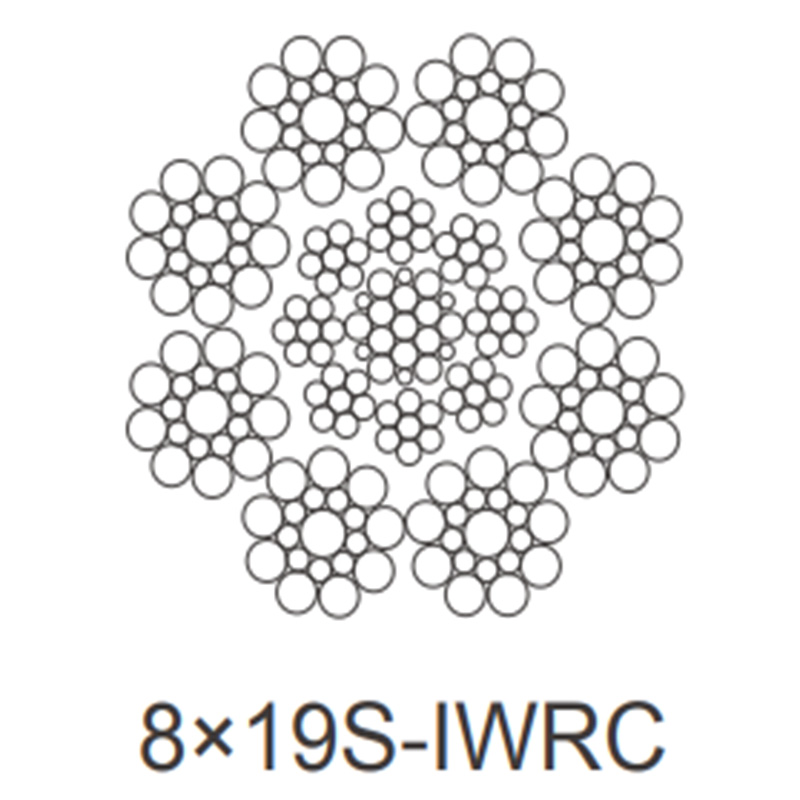

8×19S-IWRC — 8-strand all-steel core elevator traction rope

8×19W-CSC Main
Bundle View Detail View Detail View 2
Wire rope structure 8×19S-IWRC, 8×19W-IWRC
Composition characteristics Pre-formed, smooth oiled/galvanized, right-hand interlaced; good structural stability, small elongation, high breaking tensile force
Material Steel wire is carbon steel
Production standards GB 8903, JISG3525, JISG3535, ISO3444, EN12385-5, etc.
Diameter tolerance ≤10mm: -0~+3%; ≥10mm: -0~+2%

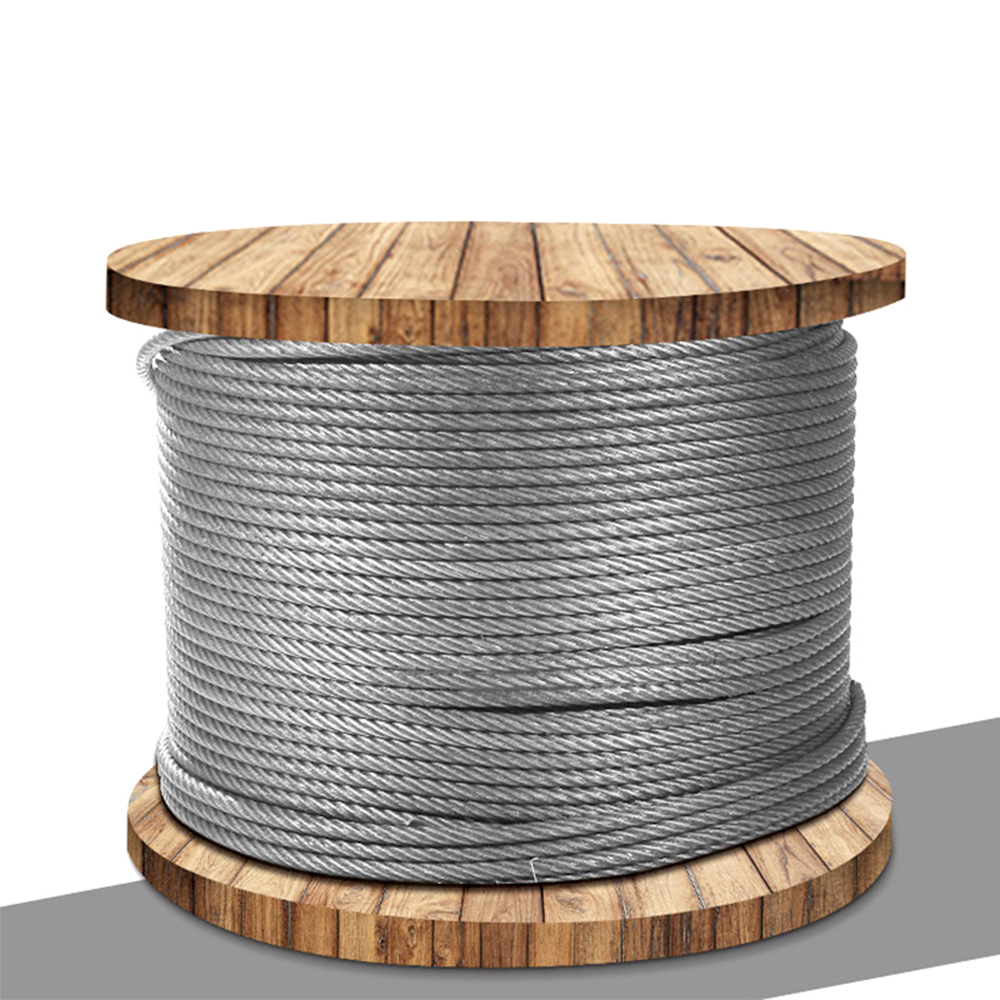

Packing method Wooden shaft packaging
Usage Ordinary elevator traction ropes, especially for high-rise high-speed elevators

6×19S-FC — Elevator speed limiter rope

8×19W-CSC Main
Bundle View Detail View Detail View 2
Wire rope structure 6×19S-FC, 8×19S-FC
Composition characteristics Pre-formed, smooth oiled/galvanized, right-hand interlaced
Material Steel wire is carbon steel, rope core is synthetic fiber
Production standards GB 8903, JISG3525, JISG3535, ISO3444, EN12385-5, etc.
Diameter tolerance Zero load tolerance: -0~+6%
Packing method Wooden shaft packaging
Usage Ordinary elevator speed limiter rope

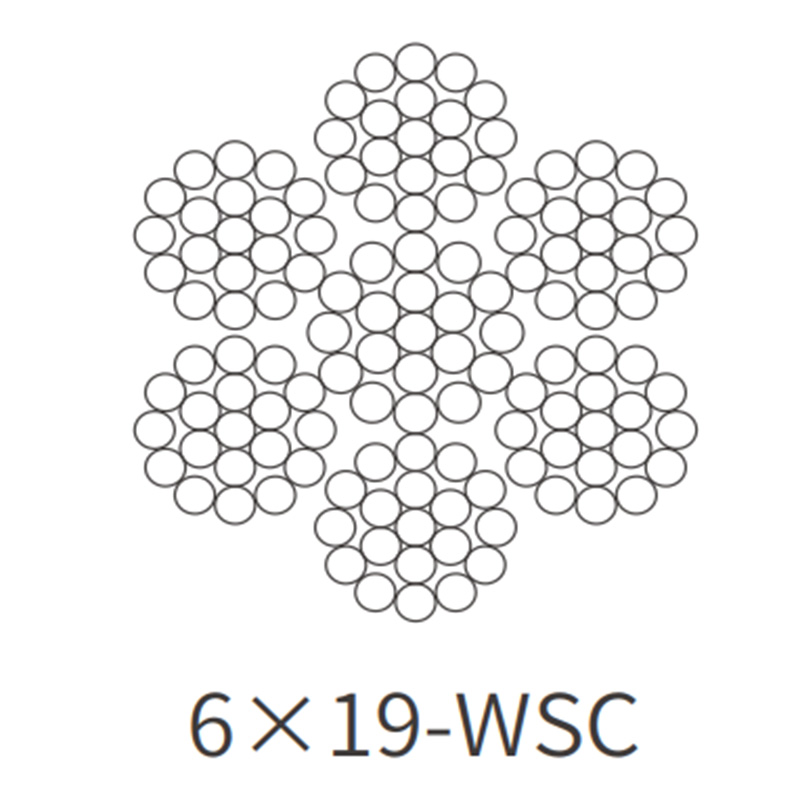

6×19-WSC — Elevator door machine rope

8×19W-CSC Main
Bundle View Detail View Detail View 2
Wire rope structure 6×19-WSC
Composition characteristics Pre-formed, galvanized, right-hand twist; fine specifications, good rust resistance, high fatigue life
Material Steel wire is carbon steel
Production standards YB/T4251, GB 8903, JISG3525, JISG3535, ISO3444, EN12385-5, etc.
Diameter tolerance Zero load tolerance: -0~+3%
Packing method Wooden shaft packaging
Usage Ordinary elevator door machine rope

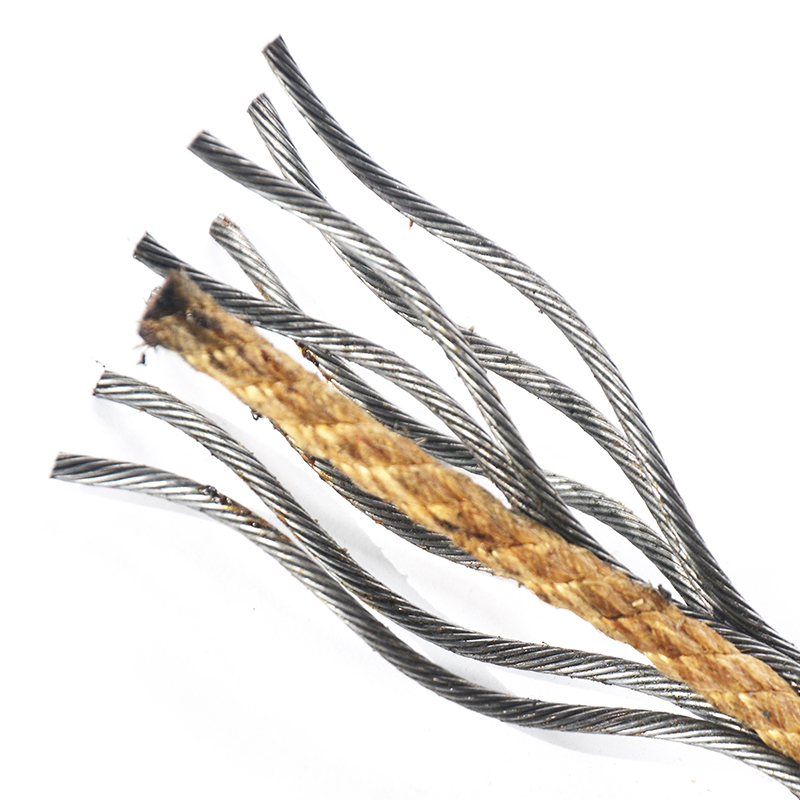

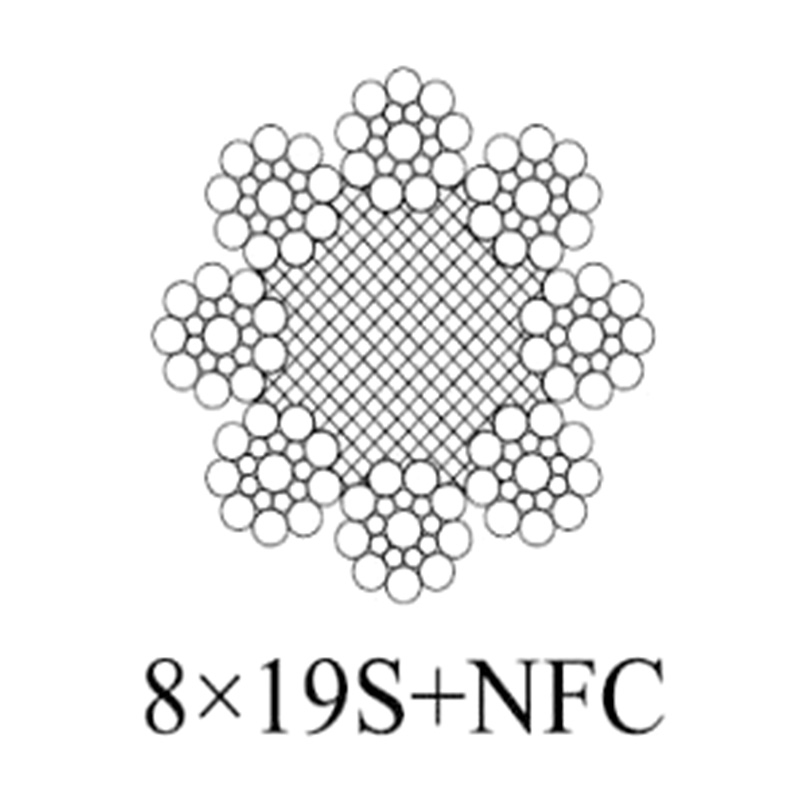

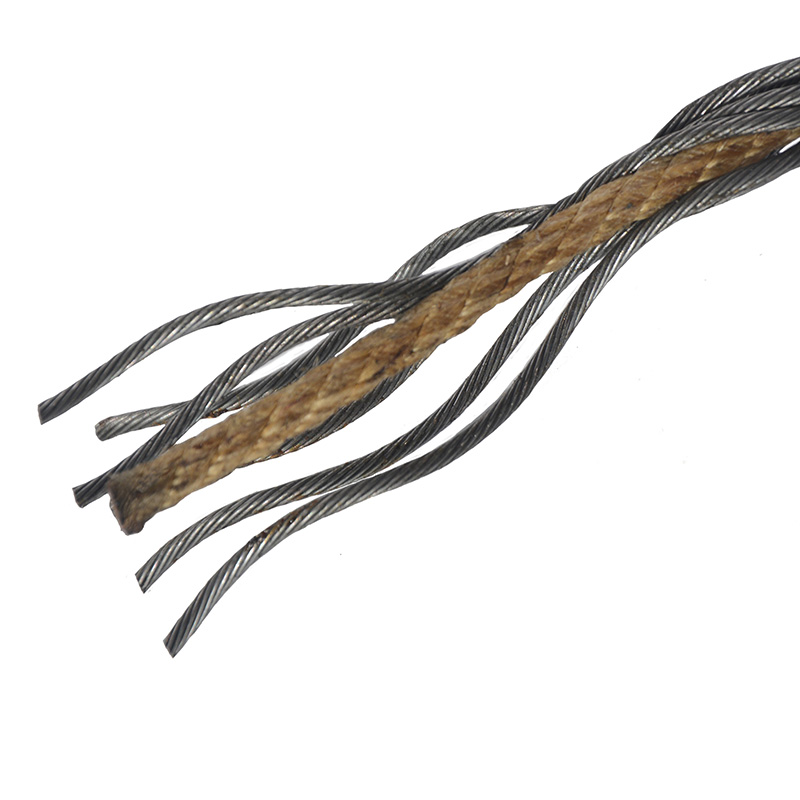

8×19S+NFC — 8-strand hemp core elevator traction rope

8×19W-CSC Main
Bundle View Detail View Detail View 2
Wire rope structure 8×19S-NFC, 8×19S-FC
Composition characteristics Pre-formed, smooth oiled/galvanized, right-hand twist; good flexibility
Material Steel wire is carbon steel, rope core is natural sisal rope core
Production standards GB 8903, JISG3525, JISG3535, ISO3444, EN12385-5, etc.
Diameter tolerance ≤10mm: -0~+6%; ≥10mm: -0~+5%
Packing method Wooden shaft packaging
Usage Ordinary elevator traction rope, high-rise high-speed elevator traction rope, etc.

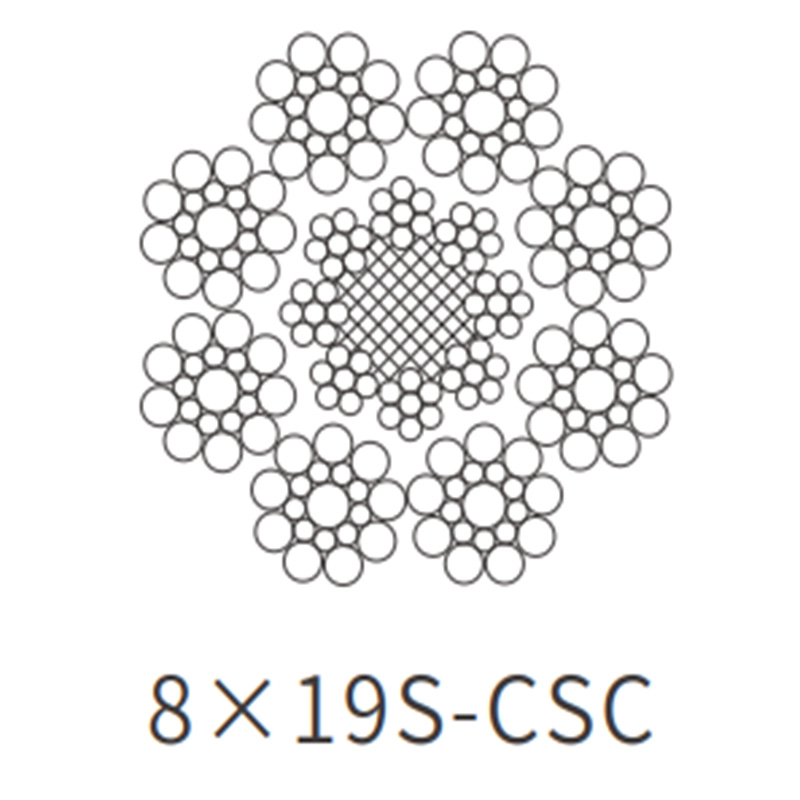

8×19W-CSC — 8-strand semi-steel core elevator traction rope

8×19W-CSC Main
Bundle View Detail View Detail View 2
Wire rope structure 8×19S-CSC, 8×19W-CSC
Composition characteristics Pre-formed, smooth oiled/galvanized, right-hand interlaced; small elongation
Material Steel wire is carbon steel, and the hemp core of the composite rope core is synthetic fiber material
Production standards GB 8903, JISG3525, JISG3535, ISO3444, EN12385-5, etc.
Diameter tolerance ≤10mm: -0~+3%; ≥10mm: -0~+2%
Packing method Wooden shaft packaging
Usage Ordinary elevator traction rope, high-rise high-speed elevator traction rope, etc.

Features

  • 1. Wire rope can transmit loads over long distances.
  • 2. The load-bearing safety factor is large, and it is safe and reliable to use.
  • 3. It is light in weight and easy to carry and transport.
  • 4. It can withstand a variety of loads and variable loads.
  • 5. It has high tensile strength, fatigue strength and impact toughness.
  • 6. Under high-speed working conditions, it is wear-resistant, shock-resistant and has good operating stability.
  • 7. It has good corrosion resistance and can work normally in harsh environments with various harmful media.
  • 8. It has good softness and is suitable for traction, pulling, bundling and other purposes.

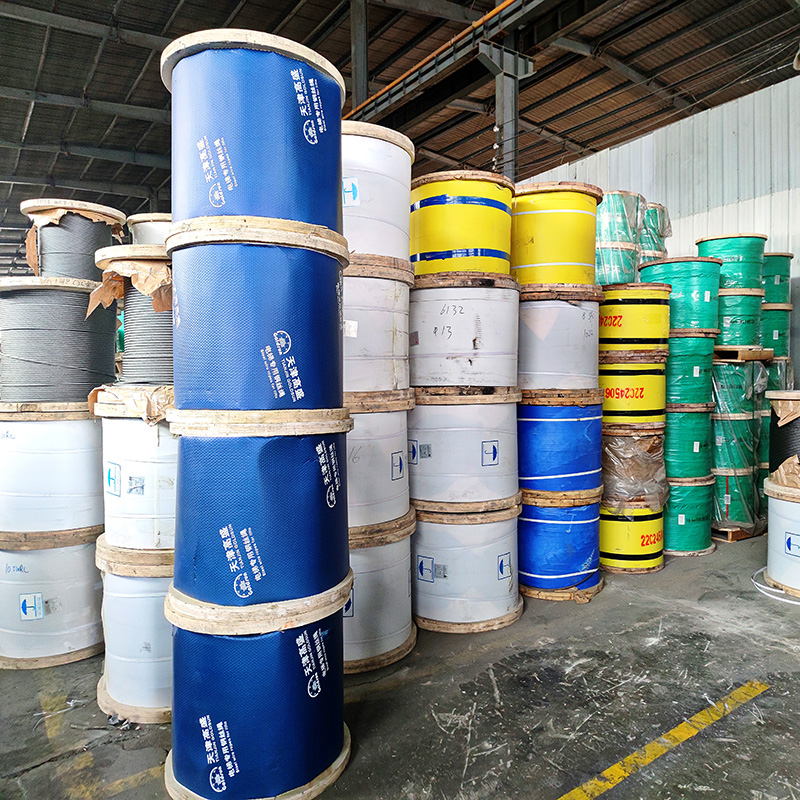

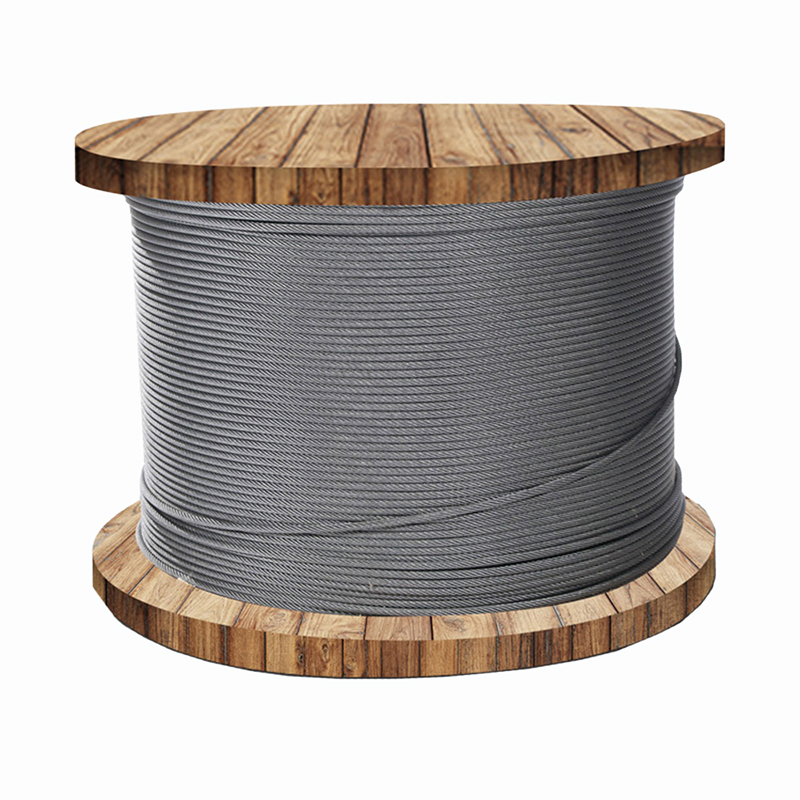

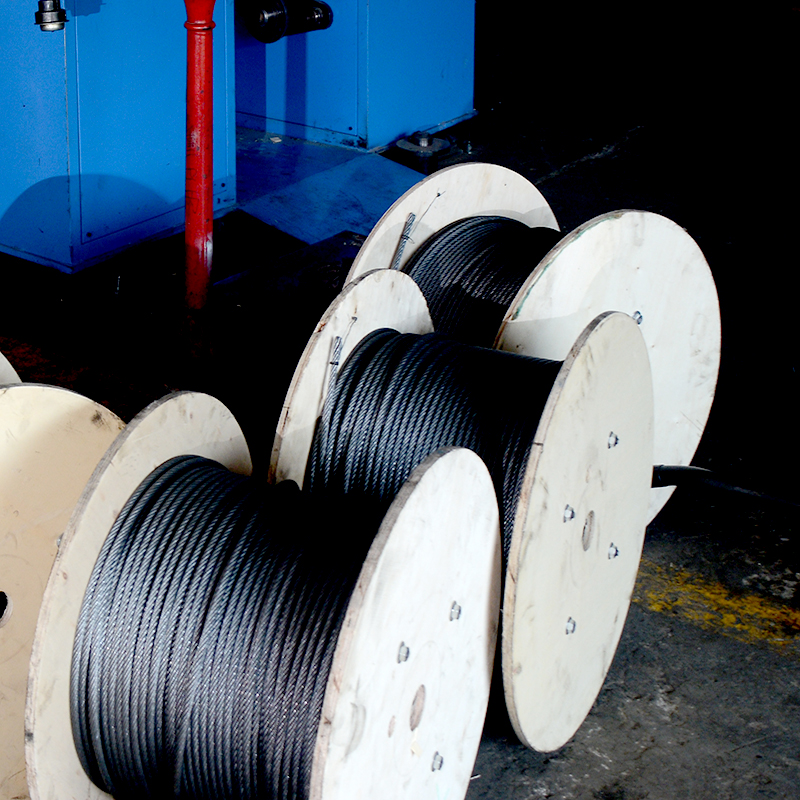

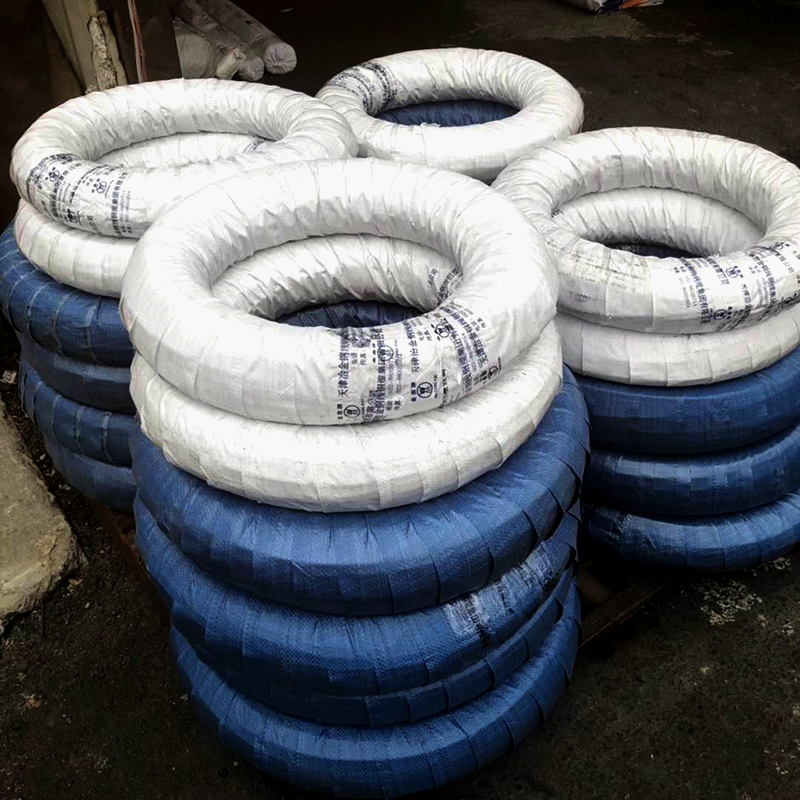

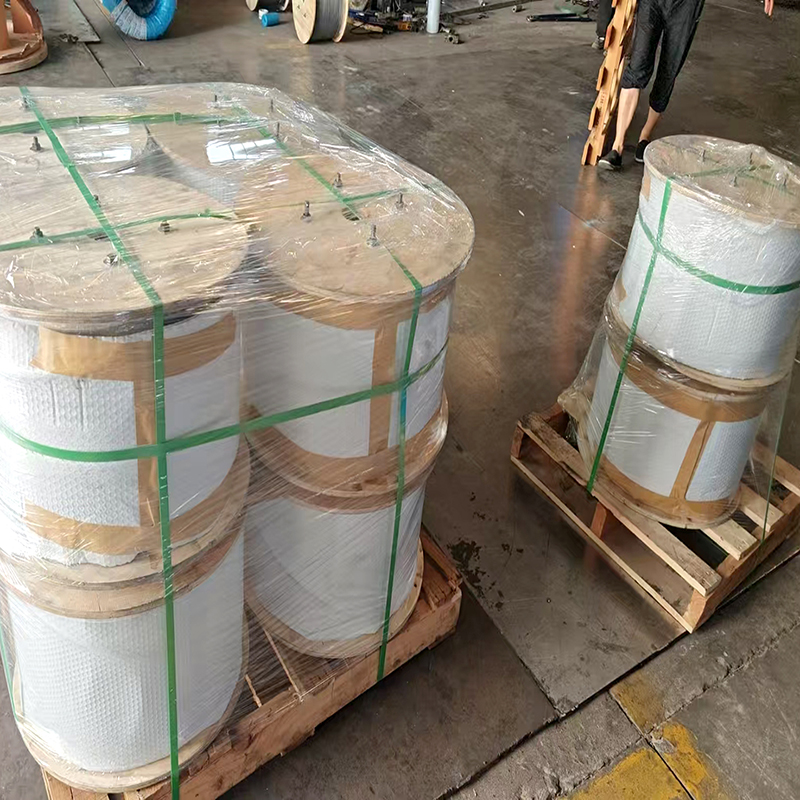

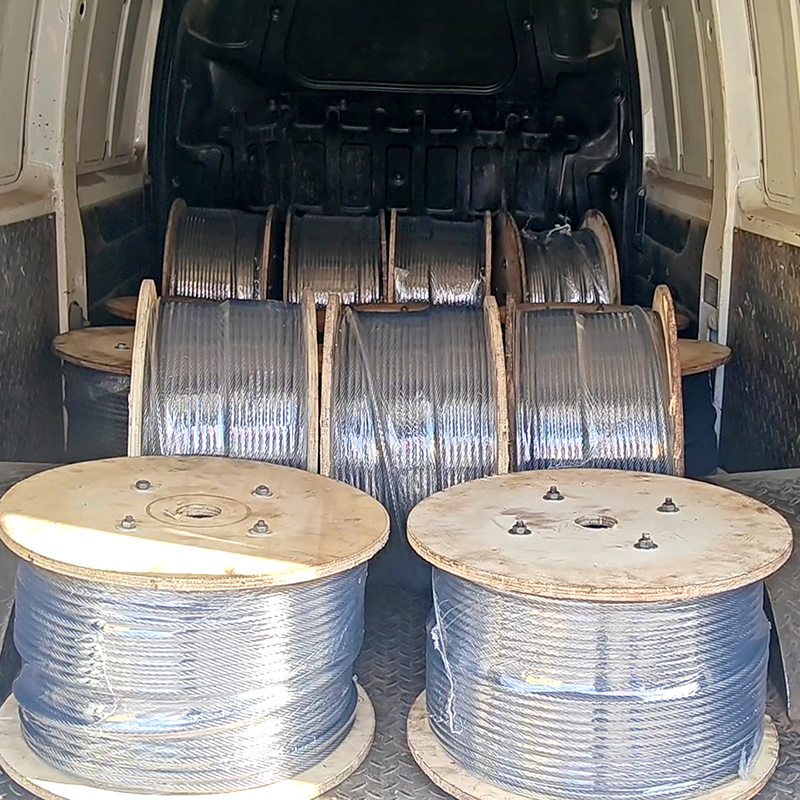

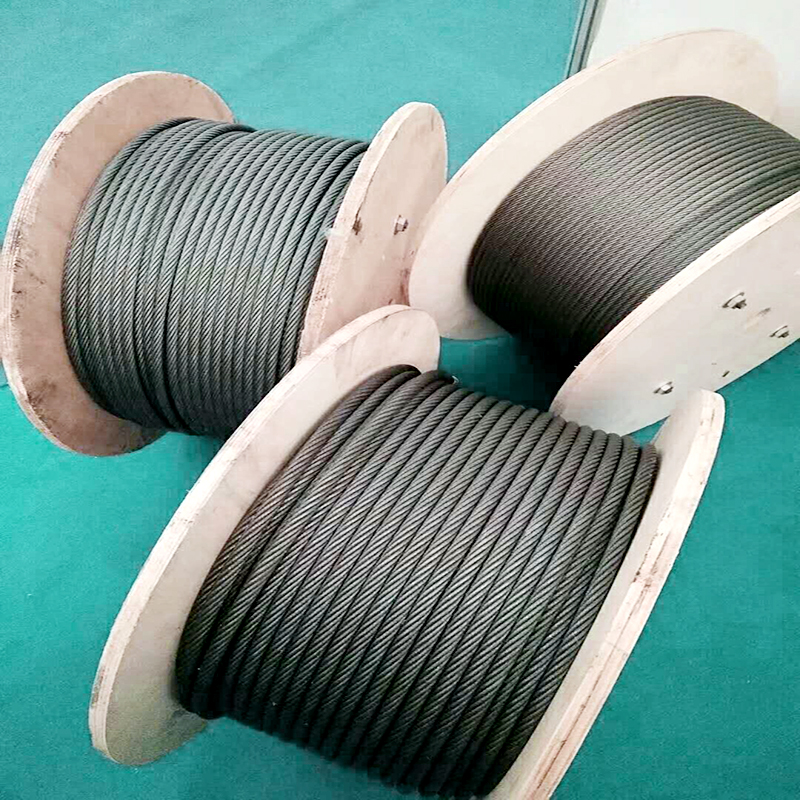

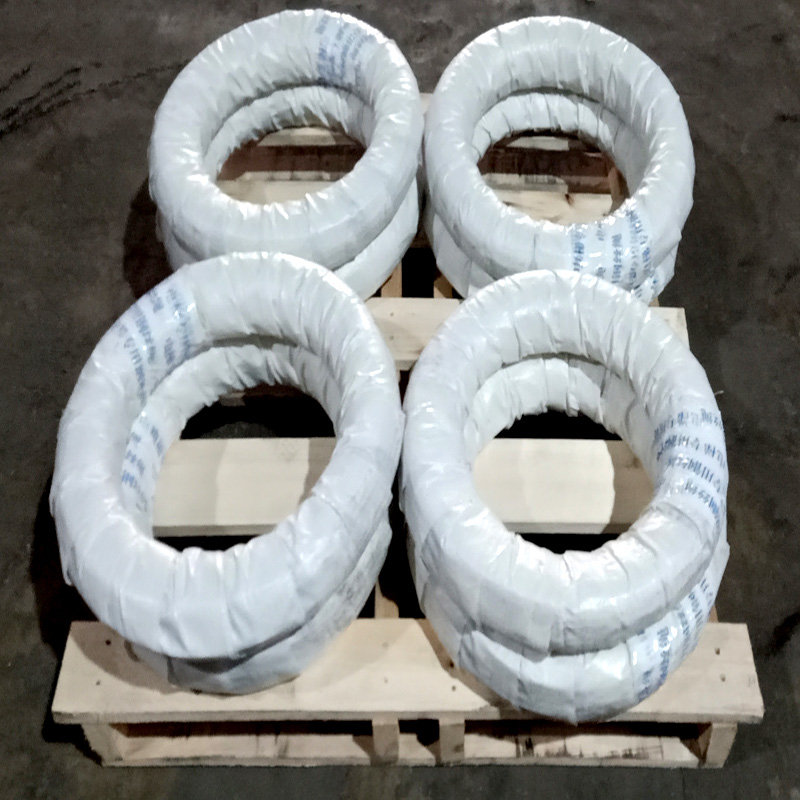

Product Packaging

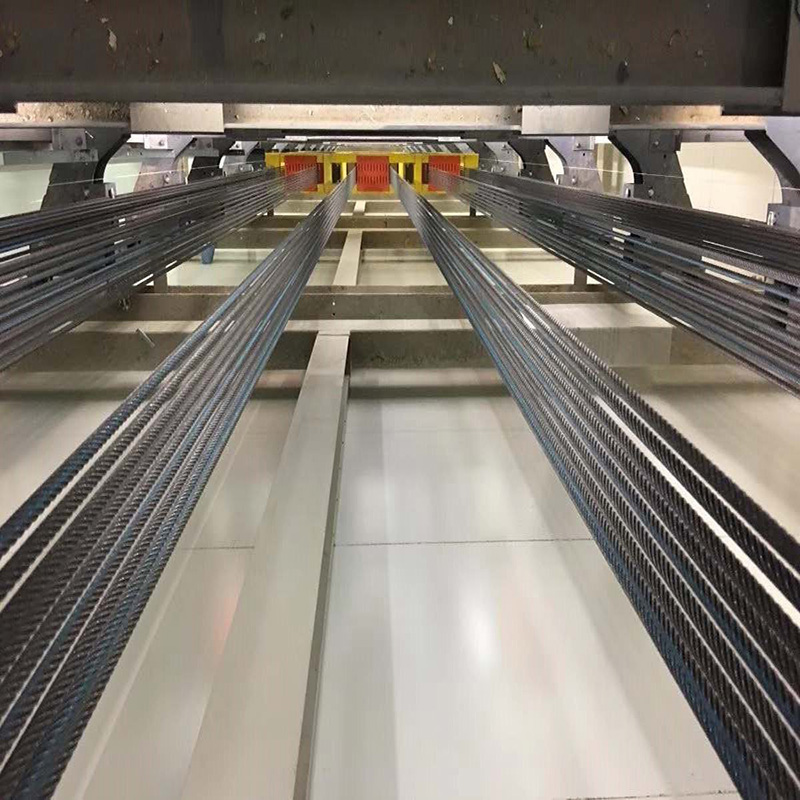

Application Areas

Wire ropes are widely used across a variety of industries including construction, elevator systems, port handling, mining, mechanical hoisting, transportation, and the power sector. They are essential for lifting, traction, bundling, and structural support applications.

Our products are especially designed for elevator traction systems in high-rise buildings, cranes, winches, and heavy machinery under demanding working conditions.

Delivery Time

Standard lead time is 7–15 working days after receiving the advance payment, depending on the specific product model, order quantity, and customization requirements. For bulk orders or special specifications, we will confirm the estimated production time before finalizing the order. Urgent orders can be prioritized after mutual confirmation and production planning.

We maintain a reasonable stock level of standard models to meet rapid delivery needs. All shipments are carefully packaged and inspected before dispatch to ensure timely and safe delivery.

Logistics & Transportation

We offer flexible logistics options to meet various customer needs. Available methods include sea freight (FCL/LCL), air freight, railway transport, and international express services (DHL, FedEx, UPS, TNT, etc.).

Shipments can be arranged on FOB, CIF, EXW, or DDP terms depending on the destination and trade agreement. All packaging follows export standards, ensuring product safety during transit. We also assist with customs clearance documentation, including invoice, packing list, certificate of origin, and other required documents.

Payment Terms

We support multiple payment methods to facilitate global transactions:

  • Bank Transfer (T/T): 30% deposit before production, 70% balance before shipment.
  • Letter of Credit (L/C): L/C at sight for bulk orders from approved clients.
  • PayPal/Western Union: Accepted for sample orders or small amounts.

Payment terms can be adjusted based on long-term cooperation, customer credit evaluation, and order volume. We provide official proforma invoice for all payments to ensure clarity and traceability.

Sample Delivery

We offer sample delivery service to help customers evaluate product quality and compatibility before placing bulk orders. Standard samples are typically available from stock and can be dispatched within 15-20 working days.

Sample fees and shipping costs are generally borne by the buyer, unless otherwise agreed. For bulk orders, sample fees can be refunded or deducted from the total amount. Samples are packed securely and delivered via international couriers such as DHL, FedEx or UPS, with tracking information provided upon shipment.

After-sales Service

We are committed to providing comprehensive and timely after-sales support to ensure long-term customer satisfaction and trust. Our after-sales services include:

  • 1. Technical Assistance: Professional engineers provide remote installation guidance, usage training, and troubleshooting via email, phone, or video call.
  • 2. Warranty Policy: Standard warranty period is 12 months from the date of shipment. For any manufacturing defects during this period, we offer free replacement or repair.
  • 3. Quick Response: All after-sales queries are responded to within 24 hours. Urgent cases are prioritized with immediate feedback.
  • 4. Spare Parts Supply: We ensure long-term availability of essential spare parts at reasonable cost even after the warranty expires.
  • 5. Replacement Process: In case of verified quality issues, we will arrange return or replacement in accordance with our service procedure and freight terms.

Our goal is to help customers use our products safely and effectively, and to build lasting partnerships based on trust, service, and performance.
